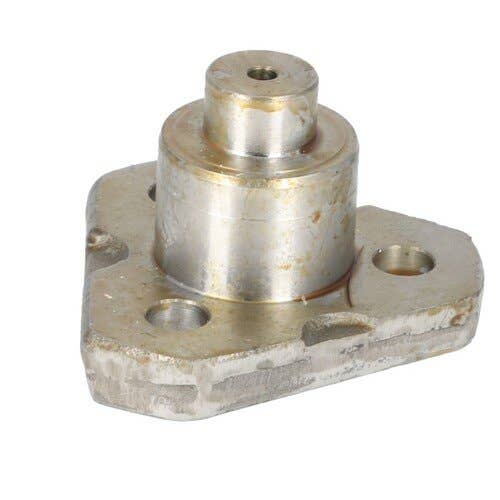

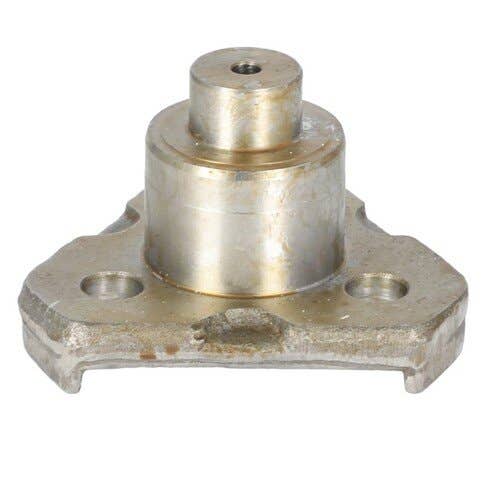

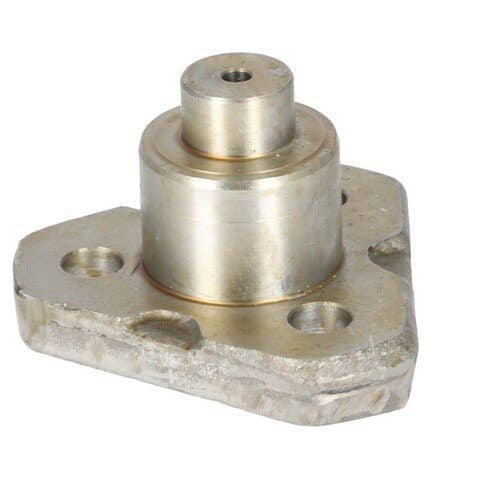

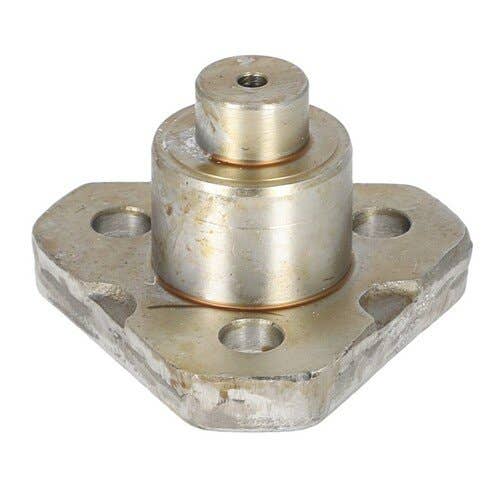

Lower King Pin - Mechanical Front Wheel Drive Economy Fits Case N13504 fits Ford 83952503 fits Case IH 5120 5130 5140 5240 N13504 fits Carraro 118526... View More

ASAP Item No.
156167
Price
$97.99
Condition
New Used Rebuilt
Shipping Icon$14.99 Flat Rate Shipping Valid with the Standard Shipping method only and does not include expedited, oversized, or LTL truck freight. Valid in the continental US only.
Estimate Fees
Fast Shipping
Guaranteed Fit
1-Year Warranty on All Parts
Fast Shipping — Most parts ship in less than 1 business day
Guaranteed Fit — Get the right part, the first time
1-Year Warranty on All Parts — New, Used & Rebuilt

Compatibility/Fitment

  • Case IH Tractor(s) 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250
  • Case Backhoe Loader(s) 480E, 480F, 480FLL, 580K, 580SE, 580SK, 590
  • Case Construction & Industrial(s) 480E, 480ELL, 480F, 480FLL, 580K, 580SE, 580SK, 584E, 585E, 586E, 590, 760, 860
  • Case Forklift(s) 584E, 585E, 586E
  • Case Skid Steer Loader(s) 480ELL
  • Case Trencher(s) 760, 860
  • Ford Backhoe Loader(s) 250C, 260C, 345C, 345D, 445, 445A, 445C, 445D, 455C, 455D, 545, 545C, 545D, 555B, 555C, 555D, 575D, 655A, 655C, 655D, 675D
  • Ford Construction & Industrial(s) 250C, 260C, 345C, 345D, 445, 445A, 445C, 445D, 450, 455C, 455D, 545, 545A, 545C, 545D, 555B, 555C, 555D, 575D, 655, 655A, 655C, 655D, 675D
  • Ford Tractor(s) 5640, 6640, 7740, 7840, 8240, 8340
  • Ford Wheel Loader(s) 545A

Replacement Parts

  • Carraro Mfg Number(s) 118526
  • Case OEM Number(s) N13504
  • Case IH OEM Number(s) N13504
  • Ford OEM Number(s) 83952503, 153326212, 3475348M1

Specifications

  • Plate Thickness: 20.69 mm
  • Hole Size: 15 mm
  • Hole Center to Center: 66 mm
  • Small Pin Diameter: 28 mm
  • Small Pin Height: 16 mm
  • Overall Height of Pin: 66 mm
  • For Carraro Version use 157765
  • For Shim use 157785
